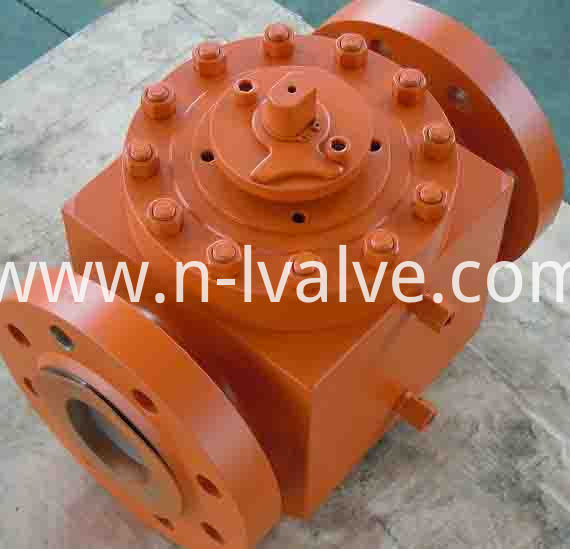

High Temperature Abrasion Resistance Ball Valve
  • High Temperature Abrasion Resistance Ball Valve

High Temperature Abrasion Resistance Ball Valve

    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF,FCA
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days

Basic Info

Material: Stainless Steel, SS, CS, Alloy Steel, Duplex Steel, Special Steel

Connection Form: Welding

Driving Mode: Electrical

Nominal Pressure: PN1.0-32.0MPa

Channel: Straight Through Type

Structure: Fixed Ball Valve

Type: Fixed Ball Valve

Function: Relief Valve

Temperature: High Temperature

Application: Industrial Usage

DN: DN100 To DN800

PN: PN16 To PN420

Sealing Type: Metal Seal

Connection: BW, Flange

Operation: Electric Actuator, Pneumatic Actuator, Wormgear

Additional Info

Packaging: Plywood Boxes

Transportation: Ocean,Land,Air

Place of Origin: PR China

HS Code: 8481804090

Port: Wenzhou,Ningbo,Shanghai

Product Description

Each performance index of the hard seal Ball Valve with ordinary ball outside, also has high temperature resistance, wear resistance and double entry into, exit from the sealing function, of which two block is equipped with the outlet one-way sealing, the stainless steel spring to adjust the seat, the valve torque is more balanced, the valve in the high frequency, high temperature difference, high differential pressure condition, the switch performance and stability.

Stop seal of ball face and cone face will be formed between the metal seal face since wedge composite ball is used, such seal is quite tight and zero leakage will be achieved in spite of the size of passage and pressure value, it can resist high-temperature, high-pressure and static electricity Inclined wedge composite ball is adopted, so rotation space between the sealing faces and little wearing is reserved accordingly, furthermore, even though there is wearing, the inclined wedge will provide compensation for service life, which prolongs the service life of the valve greatly, meanwhile, only small opening and closing force are needed during operating.

Top Enter Forged Steel Two Way Ball Valve

Looking for ideal High Temperature Ball Valve Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the HIgh Temperature Power Station Ball Valve are quality guaranteed. We are China Origin Factory of Heat Resistance Ball Valve. If you have any question, please feel free to contact us.

Product Categories : Ball Valve > Trunnion Ball Valve
